Abrasive Cutting Machines

Abrasive Cutting Machine:

Model: CCM-3

Table top machine designed for cutting smaller cross-sections and with enclosed structure, coolant arrangement and refined control panel with safety features.

Quick Overview :

  • Motor - 3 HP, 3 phase, 420 Volt
  • Pump - 0.25 HP, 3 phase
  • Cutting Capacity – 30-40 mm solid bar
  • Power Transmission – Wheel mounted on motor shaft
  • Control Panel - Separate panel consisting of On/off button for main motor and pump, Emergency stop, Overload protection. Indicator for door open etc.
  • Standard Accessories – Flanges, Spanners, Vice Key

Abrasive Cutting Machine:

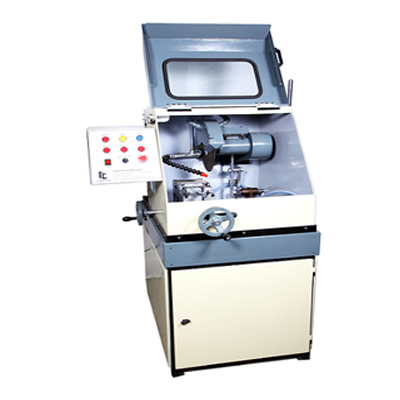

Model: CCM-5

Stand mounted, medium capacity machine designed to meet the critical requirements of metallurgical parameters for cutting the sample burn less, with complete operator safety through enclosed structure and safety features

Quick Overview :

  • Motor - 5 HP, 3 phase, 420 Volt
  • Pump - 0.25 HP, 3 phase
  • Cutting Capacity - 60 mm solid bar
  • Power Transmission - By V belt
  • Control Panel - Separate panel consisting of On/off button for main motor and pump, Emergency stop, Overload protection. Indicator for door open etc
  • Standard Accessories – Flanges, Spanners, Vice Key
  • Mounting Stand with storage compartments

Abrasive Cutting Machine:

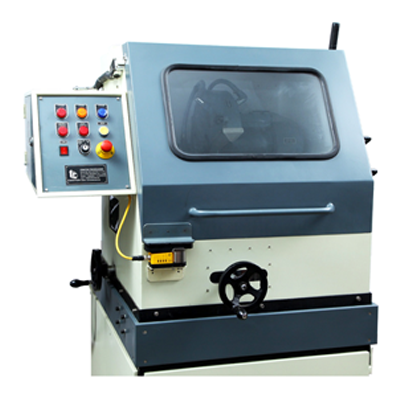

Model: CCM -10 Plus

Stand mounted, medium capacity machine designed to meet the critical requirements of metallurgical parameters for cutting the sample burn less, with complete operator safety through enclosed structure and safety features

Quick Overview :

  • Motor - 10 HP, 3 phase, 420 Volt
  • Pump - 0.5 HP, 3 phase
  • Cutting Capacity - 100 mm solid bar
  • Power Transmission - By V belt
  • Control Panel - Separate panel consisting of On/off button for main motor and pump, Emergency stop, Overload protection. Indicator for door open etc
  • Standard Accessories – Flanges, Spanners, Vice Key
  • Mounting Stand with storage compartments

Optional Accessories and consumables

Model: CCM -10 Plus

Quick Overview :

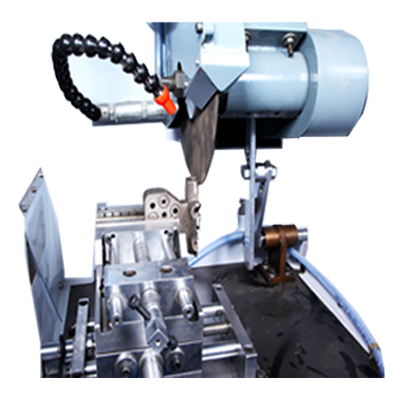

  • X-Y Vice to take the cut precisely at desired location for any of the above models
  • Zero RPM safety – Door opens only when wheel stops completely
  • Control panel components
  • Special cutting wheels of different diameters and grades for cutting materials of various sizes and hardness, coolant etc
