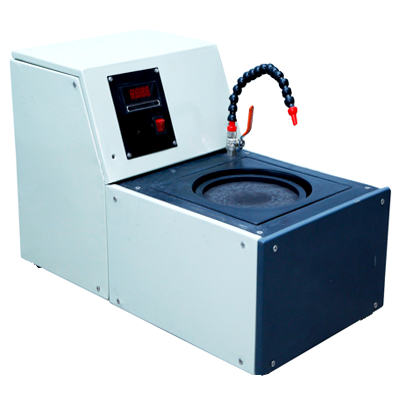

Single Disc Polishing Machine:

Model: CPM-I

Machine offer constant torque throughout speed range, having anti-corrosive fibre top

Quick Overview :

• Motor - 1 HP
• Polishing Discs - 1 No., Made of Aluminum and dynamically balanced, Disc dia – 200 mm
• Speed - 100-1200 RPM, Speed Variation and Indication - DC drive for speed variation, variation by knob and LED RPM indicator
• Power Transmission - By V belt and Pulley
• Standard Accessories - Paper holding ring, Cloth holding ring, Start up consumables
• Power Supply - 230 V AC 50 Hz
• Optional Accessories and consumables Paper and cloth holding rings, DC drives etc, Silicon Carbide papers of various grits, Polishing Cloth of 10 " Dia, Lavigated Alumina, Diamond Paste 8, 6, 3, 1, 1/4 Micron, Aerosol Spray Bottle for polishing

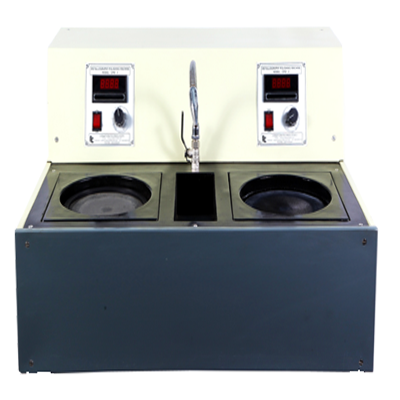

Double Disc Polishing Machine:

Model: CPM-II

Machine offer constant torque throughout speed range, having anti-corrosive fibre top and separate motors for independent disc with independent speed control knobs

Quick Overview :

• Motors - 0.5 HP separate motors for independent discs
• Pump - 0.5 HP, 3 phase
• Polishing Discs - 2 Nos., Made of Aluminum and dynamically balanced, Disc dia – 200 mm
• Speed - 100-1200 RPM, Speed Variation and Indication - DC drive for speed variation, variation by knob and LED RPM indicator
• Power Transmission - By V belts and Pulley
• Standard Accessories - Paper holding ring, Cloth holding ring, Start up consumables
• Power Supply - 230 V AC 50 Hz
• Optional Accessories and consumables Paper and cloth holding rings, DC drives etc, Silicon Carbide papers of various grits, Polishing Cloth of 10 " Dia, Lavigated Alumina, Diamond Paste 8, 6, 3, 1, 1/4 Micron, Aerosol Spray Bottle for polishing
• Model: CPM-IIC – Machine with similar specifications as above with two polishing disc driven by single0.5/ 1 HP motor.

Automatic Metallography Double Disc Polishing Machine:

Model: CPM-IIA

Specially designed for operator independent better quality of sample preparation. Machine can polish multiple samples at-a-time with pneumatically controlled uniform and centralized pressure. Swinging type Auto-polishing arm with locking arrangement lets user to switch specimen head from grinding disc to lapping disc. Machine offers consistent results and has high productivity

Quick Overview :

• Motors - 1 HP separate motors for independent discs
• Polishing Discs - 2 Nos., Made of Aluminum and dynamically balanced, Disc dia – 200 mm, replaceable type
• Disc Speed - 50-800 RPM; Speed Variation and Indication - DC drive for speed variation, variation by feather touch keys and LED RPM indicator
• Power Transmission - By V belts and Pulley
• Polishing Arm Motor - Low speed reversible motor ¼ HP, sample holder can rotate in both clockwise and anti-clockwise direction with constant speed of 60 RPM
• Operation - Pneumatically operated for centralized constant and uniform pressure application on all samples (Pneumatic line required with 6 bar pressure within vicinity of 3 mtrs). Arm can be swung from one disc to another effortlessly having locking system
• Sample Holder - Quick change type multiple sample holder with positive locking for 6 samples of 1” dia
• Operation Panel - It shall consist of Knobs for setting time and pressure, LED display for RPM, Emergency Stop button, water tap arrangement with solenoid valve, buzzer indication for completion of cycle
• Standard Accessories - Specimen leveling attachment, Paper holding ring, Cloth holding ring, Start up consumables
• Optional Accessories and consumables Grinding discs, Sample holders for 1.25” and 1.5” dia samples, automatic dosing unit for Alumina suspension dosing, Paper and cloth holding rings, DC drives etc
• Silicon Carbide papers of various grits, Polishing Cloth of 10 " Dia, Lavigated Alumina, Diamond Paste 8, 6, 3, 1, 1/4 Micron, Aerosol Spray Bottle for polishing
• Power Supply - 230 V AC 50 Hz

Other Model Automatic Metallography Single Disc Polishing Machine:

Model: CPM-A

Similar machine as above but with single disc

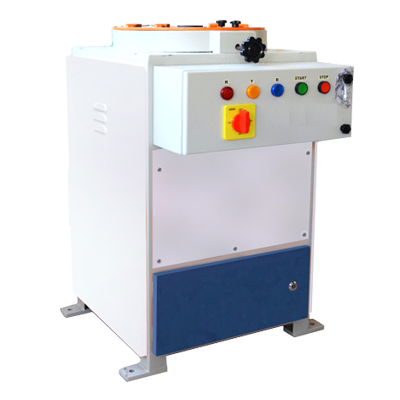

Spectro-polishing Machine:

Model: CPM-S

Specially designed machine for preparing (grinding) of sample intended for spectro-analysis. Grinding disc driven by high torque 2HP motor to give quick grinding of large samples as well. In-built suction system will take care of heavy burr generated during grinding and holding paper

Quick Overview :

• Grinding Motor - 2 HP, 415V/50/3/AC supply, Suction Motor - 1 HP 415/50/3/AC supply
• Grinding Disc - 350 mm, made of Al, Speed - 3000 RPM
• Operation Panel - Individual starter and the isolation switch with 3 Phase indicators
• Braking System - Horse shoe brake
• Storage rack for consumables
• Optional Accessories and consumables Electrical components, horse shoe brake, grinding discs etc
