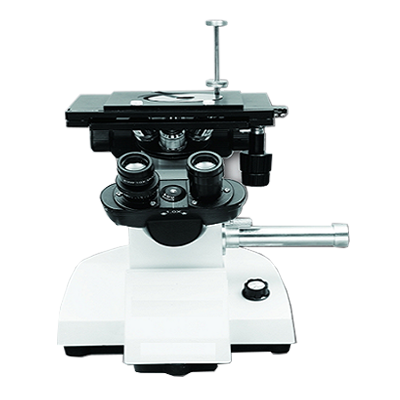

Metallurgical Inverted Microscope (Indian): Model: SuXma-Met III

Model: SuXma-Met III

Quick Overview :

• Anti-reflection coated and corrected for spherical abrasion objectives MF 10X, MF 20X, MF 40X, MF100 X (Oil Immersion), Bright field halogen illuminator with 12 V, 50 W
• Photography port on the side

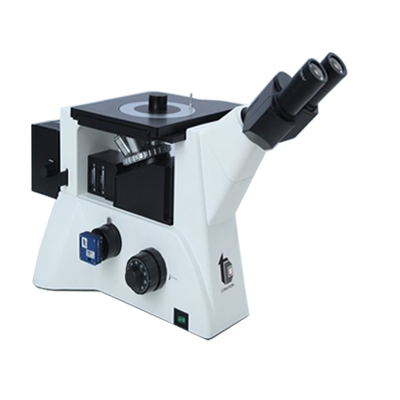

Inverted Bright And Dark Field Metallurgical Microscope:

Model: SuXma-Met IBD

Inverted microscope equipped with UIS System, Brightfield and Darkfield, Infinity Plan optics for industrial and research applications having magnification range 50X to 1000X (Dry). Wide magnification range, high resolution optics, polarizer and analyzer facility, large working stage with high travel range makes it perfect tool for various industrial and material science research applications.

Quick Overview :

• Optical System - Infinite UIS Optical System
• Viewing Tube - Siedentopf trinocular head, interpupillary distance 53~75mm, 45° inclined,
• Eyepiece - WF10X/22, Nosepiece - Quintuple
• Objectives - Long working distance Plan Achromatic BD5X, BD10X, BD20X, BD50X, BD100X
• Stage - Double Stage: 242×200mm, moving range:30×30mm
• Illumination - 12V 50W halogen lamp, Filters (Φ26) - Blue, Green, Yellow and Ground Glass, field and aperture diaphragm
• Simple Polarizer and Analyzer

Optional - DIC observation

Alternate Model - SuXma-Met IB - Same specifications as above but only with brightfield illumination

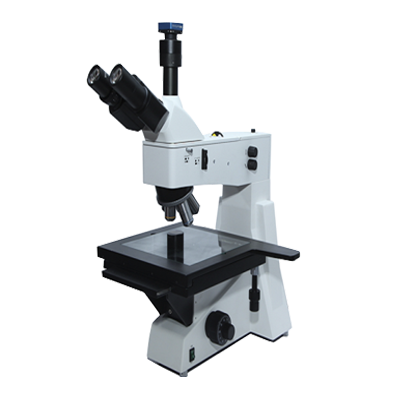

Bright and Dark field Metallurgical Microscope:

Model: SuXma-Met BD

SuXma-Met BD bright and dark field upright trinocular metallurgical microscope with the infinity optical system is extremely versatile microscope for material science research applications, professional laboratories and Industries handling specialized materials (metals or non-metals) such as steels, ceramics, plastics and rubbers, textiles etc.

Quick Overview :

• Optical System - Infinite Plan Optical System
• Viewing Tube - Siedentopf trinocular head, interpupillary distance 53~75mm, 30° inclined, diopter adjustable, can 100% split light
• Eyepiece - WF10X/22, Nosepiece - Quintuple, Inward facing
• Objectives - Long working distance Plan Achromatic BD5X, BD10X, BD20X, BD50X
• Stage - Double Stage: 280×270mm, moving range:204×204mm (8’X8’)
• Illumination - 12V 50W halogen lamp, Filters (Φ26) - Blue, Green, Yellow and Ground Glass
• Simple Polarizer and Analyzer

Optional - DIC observation

Alternate Model - SuXma-Met B - Same specifications as above but only with brightfield illumination

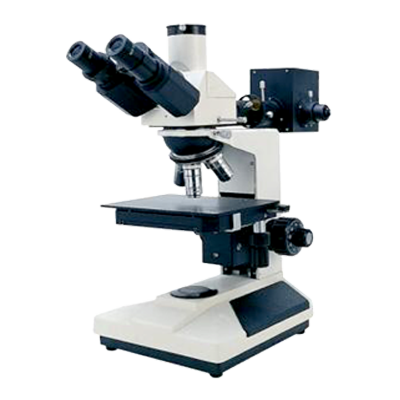

Metallurgical Upright Microscope:

Model: SuXma-Met U

Quick Overview :

• Wide magnification range 40X to 1000X (dry fashion) with high resolution optics
• DIN plan achromat objectives, corrected for spherical and color aberration, PL 4X, 10X, 20X, 40X, 80X, 100X. (Optional 4X/5X, 50X, 60X), Khohler 6V/20W halogen illumination
• Coaxial course and fine focusing, stage 140mmX185mm
• Objectives - Long working distance Plan Achromatic BD5X, BD10X, BD20X, BD50X
• Optional – LED illumination, 45° head, simple polarizer and analyzer
• Microscope suitable where samples are always mounted, else leveling press required
