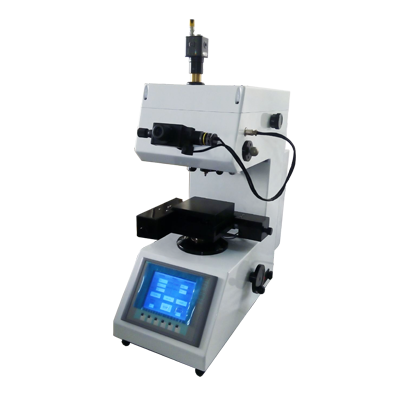

Automatic Microhardness Tester:

Model: MMV-A

Microvickers hardness tester designed to meet all the industrial as well as research work complying with all International and Indian Standards

Quick Overview :

• Test Load - 10,25,50,100, 200, 300, 500, 1000 Gms (10gf to 1000gf)
• Dwell Time - 5 – 95 seconds settable
• Objectives - 10X, 20X, 40X, 60X – 1 No. each (all Plan Achromatic)
• Loading and Unloading - Motorized loading and releasing, variable loading speed from 5-60 µ/sec
• Indexing - 6 Position Motorized rotating turret for indenters and objectives, manual over-ride also available
• Hardness measurement - By diagonal measurement with Digital filler micrometer eyepiece with 0.025micron accuracy (magnification 10X)
• Motorized Test Table - 100mm x 100mm size with 25 mm motorized movement in X – Y direction
• Motorized Focusing - Motorized focusing, manual over-ride also available
• Operation Panel - LCD Touch Screen Panel to operate Turret movement for setting indenter and objectives, setting dwell time and intensity, loading, XY movement, focusing, display of dwell, loading, unloading, diagonal length and hardness value, HV/HK options
• Camera Port
• Computerized imaging attachment consisting of digital camera, grabber card (if required), and dedicated software to measure hardness on computer with report generation facility
• Accessories supplied with machine - Self centering vice, Thin sheet holder, Wire holder, Level indicator, Lamps, Fuses, Hardness test block
• Optional features and Accessories Optional Loads – 5 gm, 2 Kg, 3 Kg, 5 Kg
• Optional Loads – 5 gm, 2 Kg, 3 Kg, 5 Kg
• Hardness Test blocks, indenters (Vickers and Knoop), objectives, bulbs etc

Special Vickers Hardness Tester with exceptionally wide load range of 50 gm to 30 kg
