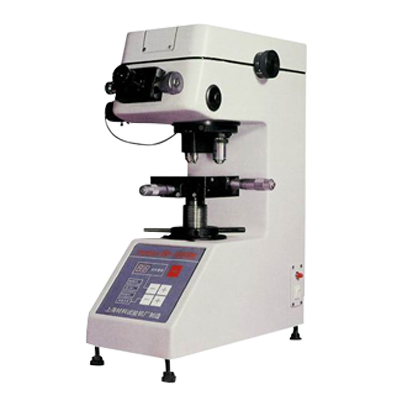

Manual Microhardness Tester:

Model: MMV-M

Microvickers hardness tester designed to meet all the industrial as well as research work complying with all International and Indian Standards

Quick Overview :

• Test Load - 10,25,50,100, 200, 300, 500, 1000 Gms (10gf to 1000gf)
• Dwell Time - 5 – 95 seconds settable
• Objectives - 10X for scanning and 40X for measurement. (Plan Achromatic)
• Loading and Unloading - Motorized loading and releasing
• Indexing - Manual rotating turret for indenter and objectives
• Hardness measurement - By diagonal measurement with manual filler micrometer eyepiece (10X)
• Test Table - 100mm x 100mm size with 25 mm movement in X – Y direction with micrometer head
• Operation Panel - Membrane keyboard panel for setting dwell time and intensity, loading, dwell & unloading indication
• Camera Port
• Accessories supplied with machine - Self centering vice, Thin sheet holder, Wire holder, Level indicator, Lamps, Fuses, Hardness test block etc
• Optional features and Accessories Computerized attachment consisting of digital camera, grabber card (if required), and dedicated software to measure hardness on computer with report generation facility
• Hardness Test blocks, indenters (Vickers and Knoop), objectives, bulbs etc
