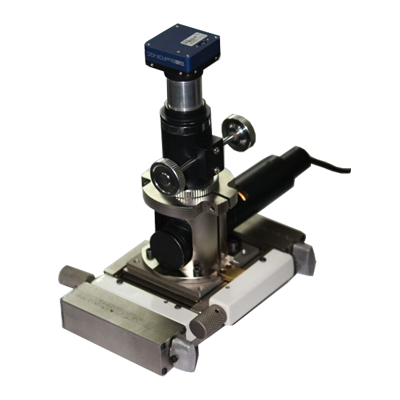

Portable Microscope with XY Stage:

Model: SuXma-Port XY

A perfect user friendly field microscope for scanning the field area (spot), this microscope feels and works just like laboratory microscopes.

Quick Overview :

• Total Magnification - 100 to 600 X
• Objectives (plan achromatic)- PL 10X, PL 20X, PL 40X, PL 60X (replaceable)
• Eyepiece - Wide field WF 10X
• Incident light source - LED source with brightness control
• Supply - Adaptor of 230V, A.C.
• XY movement fixture for scanning the field area without lifting the microscope
• Magnetic stand to hold the microscope steady during scanning. Battery back-up with battery charger.

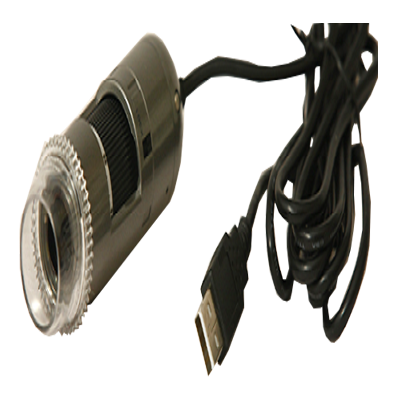

Portable Digital Microscope:

Model: SuXma-Port D

Rugged USB powered digital handheld microscope with 1.3 MP in-built sensor, Wide magnification range 10X-500X for macroscopy and microscopy with calibration facility, Large working distance, White LED light, option for polarizer

Quick Overview :

• Finds applications in non-destructive testing, where object is large and need to be observed on-site, in various fields such as material science, textile, printing technology etc.

Universal Microscope:

Model: SuXma Uni I

Quick Overview :

• Vertical (Upright) microscope with transmitted and reflected light, Polarizer and analyzer, Magnification – 40X to 400X (Optional 600X, 800X and 1000X), Option available for infinity objectives, fluorescence mode
• Finds applications in biology, life sciences, powder and cleanliness analysis, pharmaceutical fields, Textile etc

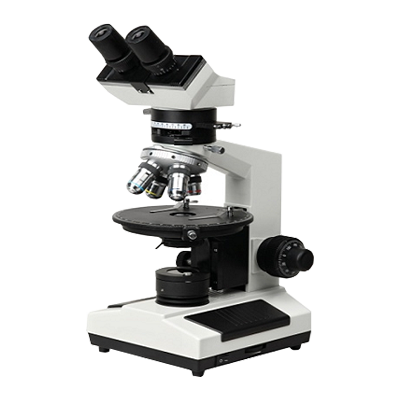

Trinocular Geological / Petrological Microscope:

Model : SuXma Geo I

Vertical (Upright) microscope with transmitted and/or reflected light, Polarizer and analyzer, Bertrand lens and optical compensators, Revolving round stage with graduations

• Finds applications in all kinds of geological and petrological studies
