Particle Size Analysis

Applications :

  • Engine, Transmission, Braking components
  • Fuel and hydraulic line components
  • Electronic components
  • Fluids – Fuel, oils, coolants etc
  • Cleanliness Analysis as per VDA19.1, ISO16232-2018, ISO 4406 & 4407, ASTM F312 etc

Features/Highlights :

  • Particle size measurement right from 1 micron
  • Quick scanning and faster processing to deliver the report in short time
  • High resolution optical system
  • High resolution German made camera
  • High precision motorized stage with XYZ automation programmable
  • State of the art, Unified and simplified user
    • interface software; user friendly navigation
  • Intelligent Metallic Particle separation
  • Advanced Fiber Identification with Elongated Length feature
  • Adaptability for range of filters/membranes such as cellulose, Nylon, PTFE etc
  • Options for 25 mm and 90 mm scanning also available
  • Specially designed Database and Reporting software

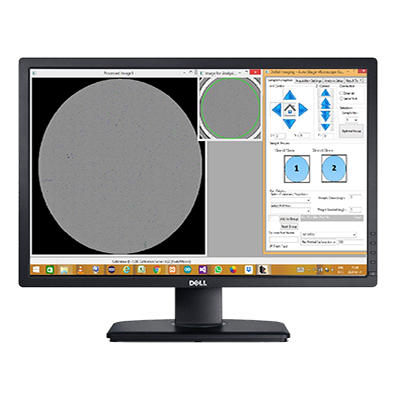

DeXel-Filtrate Imaging software :

  • Unified user interface software to harmonize the operation across all automatic models
  • Specially designed Image analyzer to analyze and measure all particles on filter paper as per any applicable standard such as ISO16232-18, VDA19.1, ISO4406 / ISO4407 etc
  • Stitch all captured images to generate a single image of entire filter paper
  • Automatically analyze this single image for determination of particulate contamination as per desired standard
  • Separation of particles as Metallic, Non-metallic, and fibres
  • Distribution all particles into user/standard defined size classes
  • Estimation of Filter Occupancy (Patch Saturation)
  • Real time Auto-Focusing
  • Intelligent Metallic Particle separation
  • Advanced Fiber Identification with Elongated Length feature

Stage Operating Software :

  • XYZ movement control of stage from PC

Optional Features

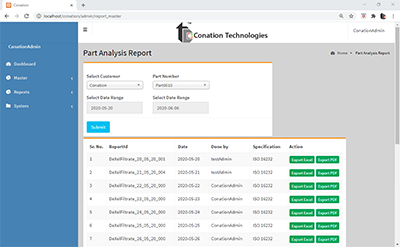

  • Integrates the customer database (customer name, ID, address etc), part database (part no., part name, part area/wetted surface areaetc) to reporting tool of Particle Analysis system

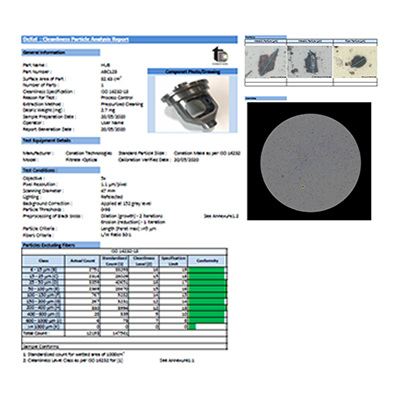

  • User can generate the reports as per selected customer and as per selected part no.; as per provided report template. The report shall include patch photograph, derived CLEANLINESS CLASS as per specified standard / customer etc.
  • Special login to authorized users only. Report will have Name and ID of user who has generated it.

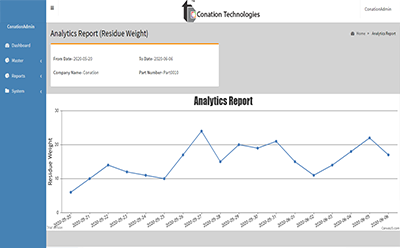

  • Monthly / Yearly analysis of cleanliness reports as per part no. / Customer
  • Admin can fetch specific data using different search parameters. Search parameters can be user, part No., customer ID, or combination of any of these 3 parameters.
  • Fetched data can be exported to excel for further analytics.
  • CONATION make vertical microscope– 50X to 200X
  • UISInfinity Optics; Plan Achromatic objectives 5X, 10X, 20X
  • Polarizer and Analyzer
  • Motorized programmable XY stage, Travel range - 50X50 mm; Positioning accuracy - 10 micron
  • Motorized Z (focusing); focusing accuracy - 2 micron
  • Controller for XYZ motorized operation
  • Halogen 6V/30W illumination
  • 5 MP Color cameraDeXel-CAM (Made in Germany)
  • DeXel-Filtrate Imaging softwareCompliant to ISO 4407, IS 16232, VDA19.1 etc
  • State of the art Unified and simplified user interface software, user friendly navigation

Optional –Joystick, Advanced reporting tool & analytics software, 90 mm scanning stage, Objectives 50X & 100X, m etc

Key Specifications :

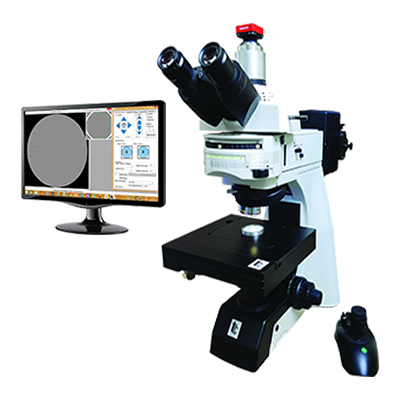

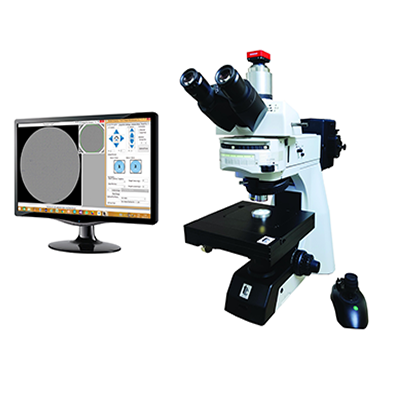

  • CONATION make Advance vertical microscope– 50X to 200X
  • Advanced Infinity Optics; Semi-Apochromat objectives 5X, 10X, 20X with higher numerical aperture (N.A.)
  • Brightfield and Darkfield observation
  • Polarizer and Analyzer
  • Motorized programmable XY stage, Travel range - 80X60 mm; Positioning accuracy - 5 micron
  • Motorized Z (focusing); focusing accuracy - 1 micron
  • Controller for XYZ moterization and Joystick for user-friendly operation
  • Halogen 24V/100W high intensity illumination
  • 5 MP Color cameraDeXel-CAM (Made in Germany)
  • DeXel-Filtrate Imaging softwareCompliant to ISO 4407, IS 16232, VDA19.1 etc
  • State of the art Unified and simplified user interface software, user friendly navigation
  • Many other advanced features in Microscope system

Optional – Advanced reporting tool & analytics software, Apo chromate objectives 50X and 100X, DIC etc

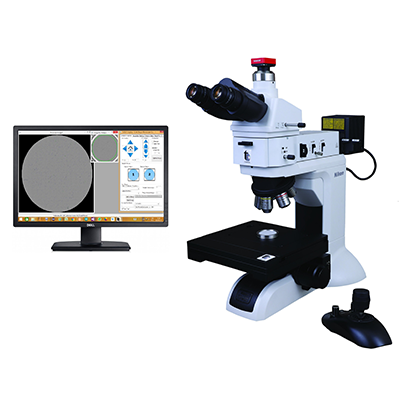

  • NIKON make, ModelLV-150 vertical microscope– 50X to 200X
  • Nikon’s unparalleled to capture each particle with greater clarity
  • High class Semi-Apo “CFI TU Plan FLUOR” objectives 5X, 10X, 20X
  • Polarizer and Analyzer
  • Halogen or LED illumination option
  • Motorized programmable XY stage, Travel range - 80X60 mm; Positioning accuracy - 5 micron
  • Motorized Z (focusing); focusing accuracy - 1 micron
  • Controller for XYZ moterization and Joystick for user-friendly operation
  • Halogen 24V/100W high intensity illumination
  • 5 MP Color cameraDeXel-CAM (Made in Germany)
  • DeXel-Filtrate Imaging softwareCompliant to ISO 4407, IS 16232, VDA19.1 etc
  • State of the art Unified and simplified user interface software, user friendly navigation
  • Many other advanced features in Microscope system

Optional – Advanced reporting tool and analytics software, Sem-Apo 50X & 100X objectives, DIC etc

Cleanliness Particle Size Analysis

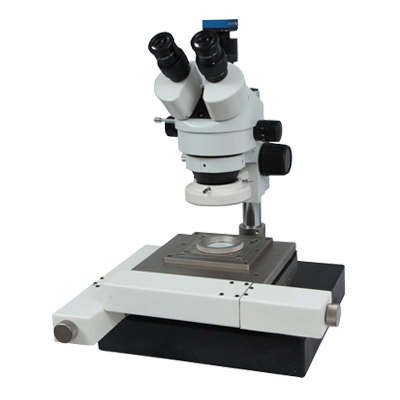

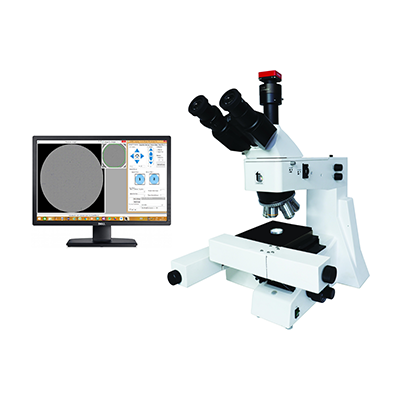

Model: DeXel-Filtrate ™ II

  • Stereozoom microscope with motorized and programmable X-Y stage
  • High resolution camera
  • DeXel – FilTrate Imaging software

Quick Overview :

  • Zooming Ratio 6.4: 1; Objective - 0.7X to 4.5X; Magnification 7X to 45X
  • Motorized Stage - Integrated mechanical stage size 150mm X 150mm or better; Range of motion 50 mm X 50 mm. Programmed movement by dedicated stage control software and also movement by arrow Keys on keyboard.
  • White LED ring light illumination
  • Specially designed sample holders for different filter paper sizes

High Resolution Camera and DeXel – FilTrate™ Imaging software same as above in Model: DeXel-Filtrate ™ Optical

Cleanliness Particle Size Analysis

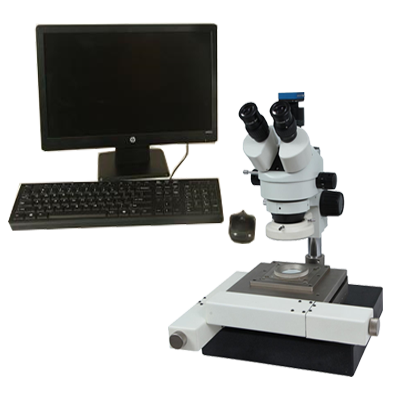

Model: DeXel-Filtrate ™ I

Quick Overview :

  • Stereozoom microscope with mechanical (Manual) X-Y stage
  • High resolution camera and
  • DeXel – FilTrate Imaging software
