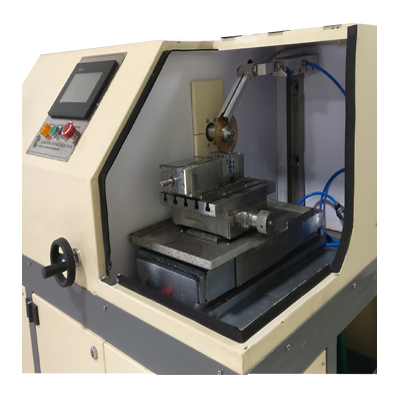

Diamond Precision Saw:

Model: CDS-4000 Auto

Fully automated Diamond Precision Saw is equipped with high torque motor to run effectively at low as well as high speed starting from 200 to 4000 RPM. The machine has LCD touch screen panel for setting and monitoring of feed and position parameters, Motorized precision X, Y and Z movements for thin slicing and dicing operation and sturdy vice for holding heavy samples for bulk cutting.

Quick Overview :

• Motor Capacity - 2 HP High Torque geared motor, Wheel shaft - ½” dia;
• Spindle Speed - Variable from 200 RPM to 4000 RPM;
• Cutting feed - 0.1 mm to 25 mm per minute;
• Cutting Action - Job moves towards the Blade, with programmable feed having Ball screw and stepper motor driven mechanism
• Cutting Capacity - Upto 50 mm max., Linear Stroke - 120 mm, Sturdy vice having 4” opening Jaw;
• Thin section cutting - T-slotted table with perpendicular Motorized movement to cutting axis (X movement) with readability of 10 micron for taking serial parallel cuts at desired intervals
• Cutting Wheel Height Adjustment - motorized movement settable from operating panel to adjust the height of the cutting wheel according to blade size. Maximum movement 50 mm.
• Coolant systems - Built-in recirculating system with coolant hoses
• Power Supply - 230 V AC 50 Hz
• Standard Accessories - Flanges made of S.S., Diamond wafering blade, tool kit etc.

Other Models :

CDS4000 - Same as above but with Manual X movement and without Z movement

CDS4000Z - Same as above but with Manual X movement and manual Z movement
