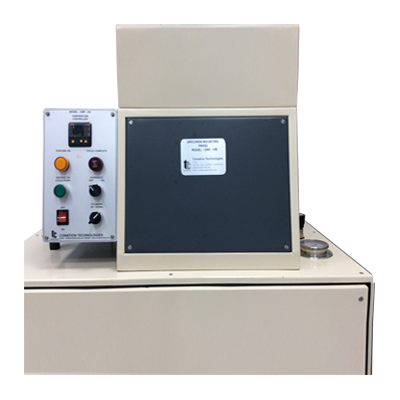

Automatic Electro-hydraulic Specimen Hot Mounting Press:

Model: CMP-H II

Electro-Hydraulic Specimen Mounting Press is designed user friendly for efficient and high quality, production of the fully consolidated specimen mounts. The press has rigid construction, complete enclosed body and elegant look. Electro hydraulic operation, Microprocessor based control panel consisting of LCD display, digital temperature controller, buzzer for heating/cooling cycles are the main features of this equipment. One can produce absolutely consolidated embedded single specimen-mould with good finish.

Quick Overview :

• Mould cylinder Diameter - 1”
• Mould heating - By band heater of 1000 watts
• Mould cooling arrangement - By water circulation around band heater assembly, operated through solenoid valve
• Thermocouple - PT-100
• Pressure application - By electro-hydraulic power pack of 60 litres
• Pressure setting - By rotating knob
• Microprocessor based Control Panel - Consisting of LCD display, Temp. Controller to feed exact required current, Avoiding the temperature overshooting leading to heat treating of the sample. Setting of Temperature (Heating, cooling), hold time. Auto cycle for heating, holding, cooling with buzzer indications for both cycles
• Power Supply - 230 V AC 50 Hz
